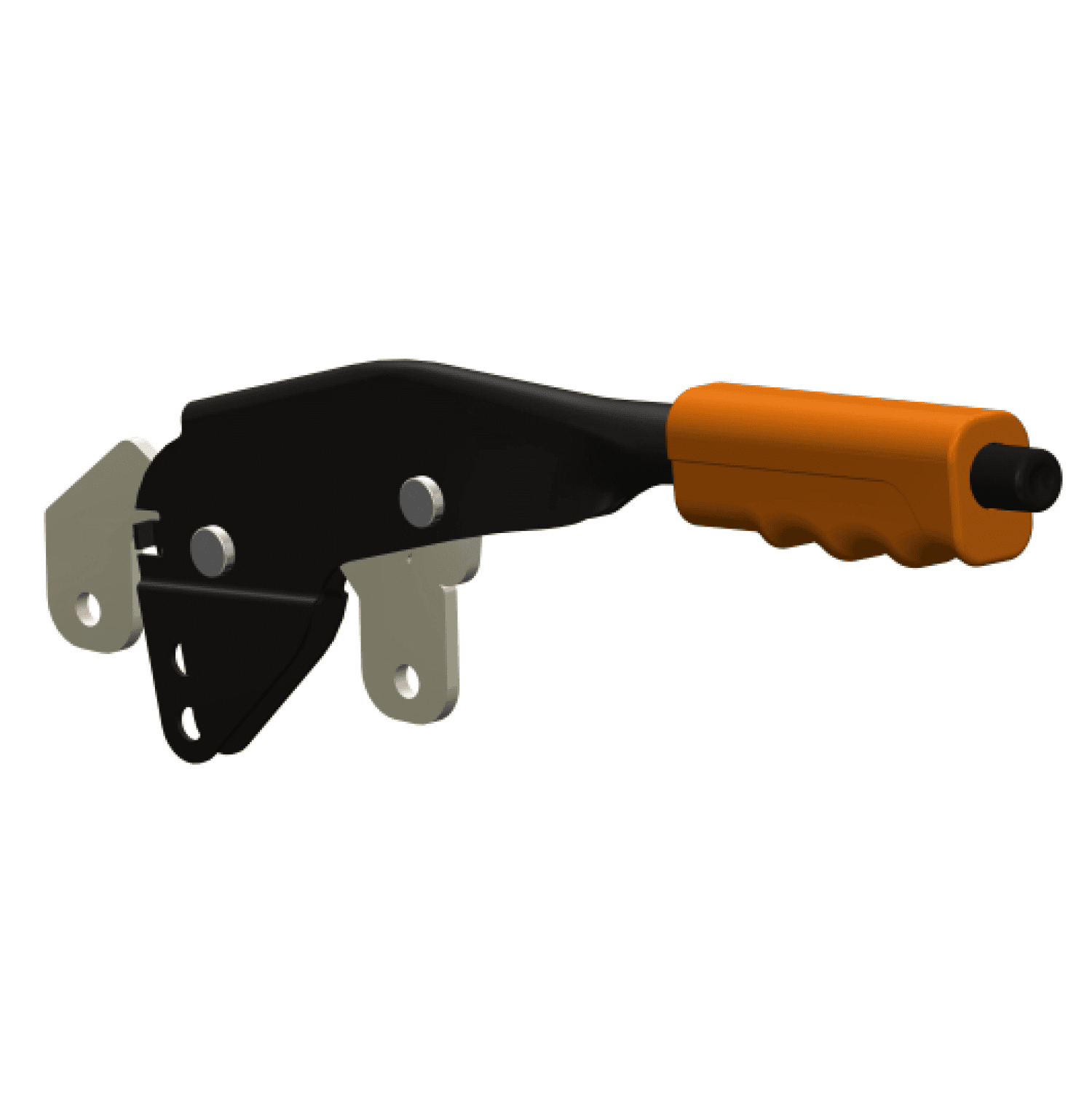

Hand Brake

Hand Brake

Ratchet Park brake system

Categories: , , ,

Description

Salient Features

  1. Various mounting configurations possible with same mechanism
  2. Single and Dual Cable actuation
  3. Adjustment lock feature

Special Features can include :

  1.   Warning indication in dash board
  2.   Positive locking for better safety
  1. Vehicle ranging from 70 HP and above
  2. Lever ratio 1:2
  3. Parking brake actuation force at handle 15N
  4. Operating angle 90°
  5. Tested 5,00,000 cycles @ 250N
  6. Operating temperature -20°C to +85°C
  7. Salt Spray resistance 140 Hrs Min.
  8. With and without switch variants available
  1. Highly reliable
  2. System integrated with cables
  3. Less maintenance & easy brake setting against wear out
  4. Engineered to withstand fatigue load through out endurance cycle
  5. Minimum wear and tear of parts after life cycle testing
  6. Cost effective
  7. Easy to install & adjust
  8. Dual and single cable arrangement possible
