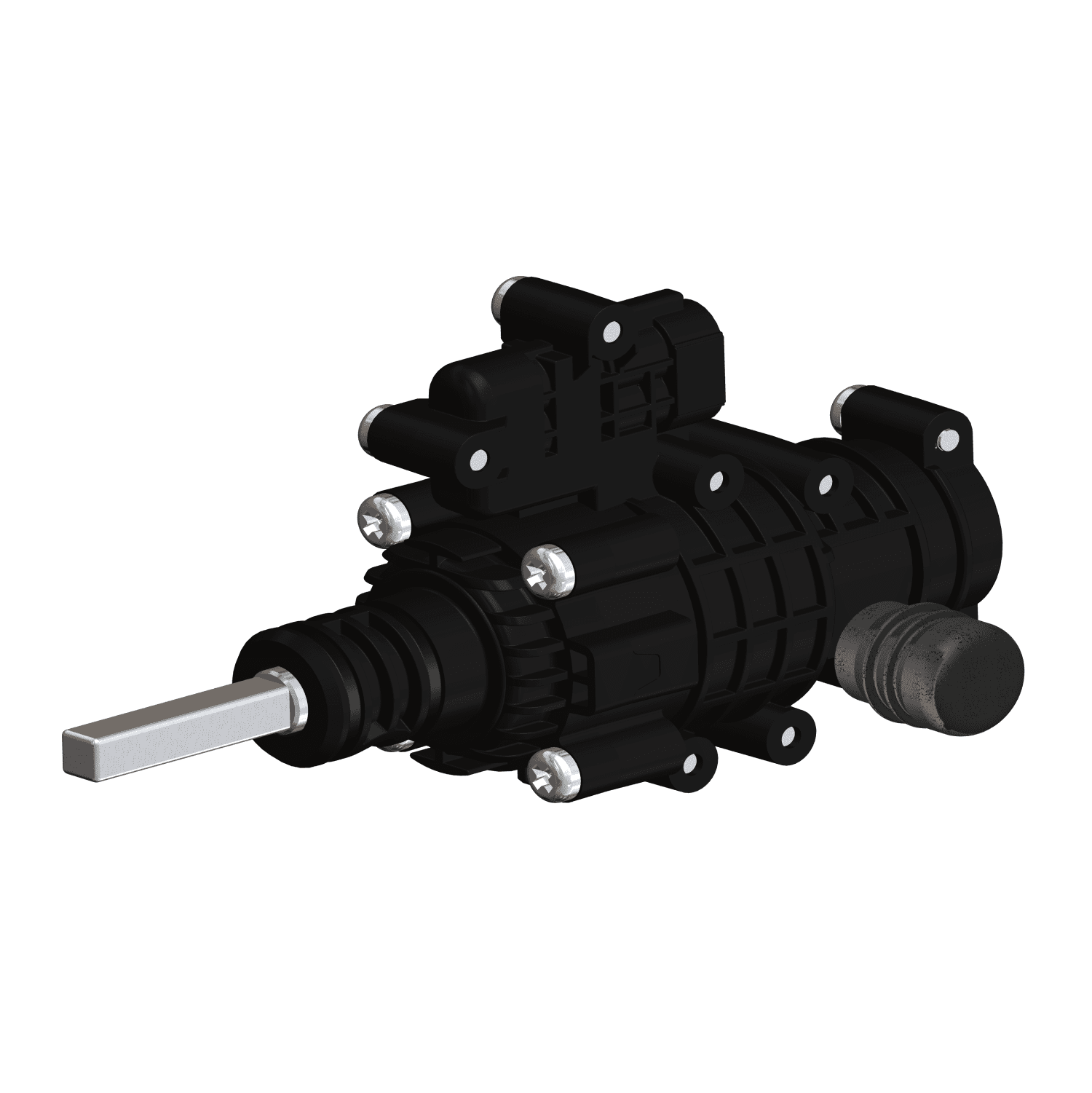

Inline Clutch
Product Features
- Transmission ratio: 1: 1; no gear reduction
- Operational torque: 4 Nm
- Maximum input torque: 6 Nm
- Rated voltage: 12 V DC Supply
- Current drawn at 12 V (Load) 0.3 A (max.)
- Direction of rotation: Clockwise
- Connector Type: Inbuilt two pin male connector with Weather pack Sealed
- Clutch type: OFF type
- IP rating: IP55
- Corrosion Resistance: 72 hrs against white rust; 144 hrs against red rust
- UV Protection: 600 Hours
- Endurance: Tested up to 1000 Hours
