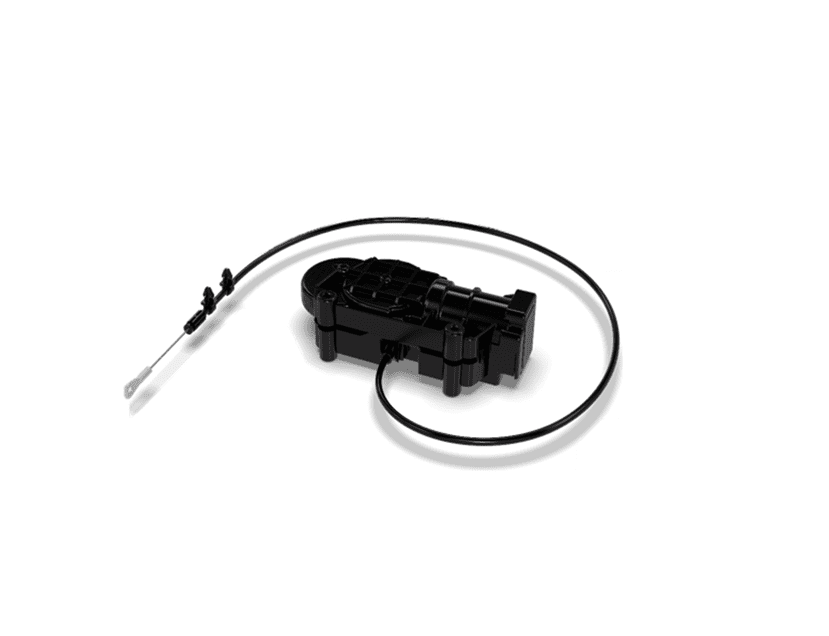

High Force Actuator

High Force Actuator

Application: EZ Entry, Seat Fold and Tumble, Seat Recline and Seat Track Release

Description

  1. Force Rating: 400N-600N @ 12Vdc, 25°C
  2. Stroke @ Actuator: 45 mm
  3. Operating Voltage: 9 to 16 VDC
  4. Operating Temperature: -40 to +85°C
  5. Spring Driven, Electrically Controlled Back Drive
  6. Package: 195 x 85 x 55mm
  7. Programmable features include
  8. Maximum Run Time
  9. Cycle Count
  10. Delay Between Cycles
  11. Switch Duration
  12. Current Limit
  13. Multiple Connector Options
  14. Multiple Conduit/Cable End Options
  15. GM / Ford Standard Compliance
  1. Dimensions: 195x85x55 (660g)
  2. Force: 400N-600N
  3. Stroke: 45mm
  4. Operating Sound: 70dba
  5. Operating Voltage: 9V-16V
  6. Operating Temperature: -40℃ - 85℃
  7. Cable Return: Mechanical
  8. Connector: Std. OEM connectors
  9. Programmable: Internal PCB or by Vehicle Module
