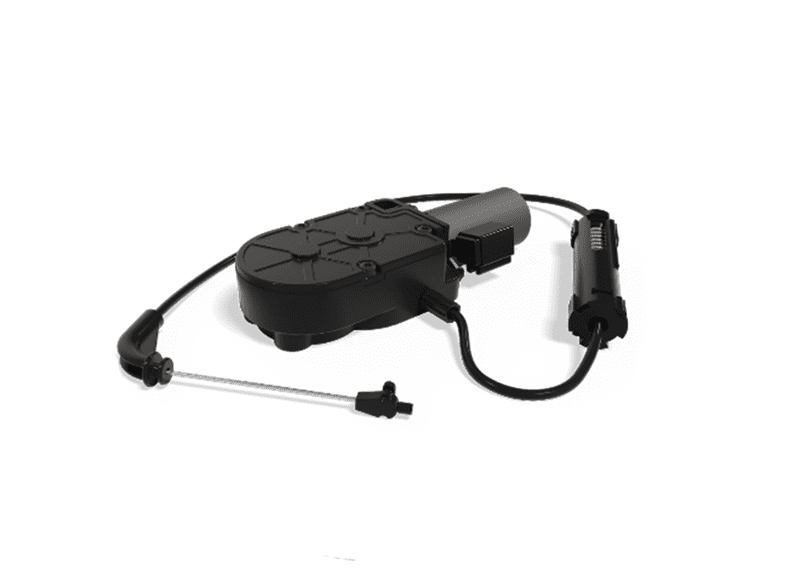

Medium Force Actuator 1

Medium Force Actuator 1

Medium Force Actuator 1

Application: Seat Fold, Seat Recline and Head Rest Fold

Categories: ,

Description

  1. Small Foot Print
  2. 250N Pull Force @9vdc
  3. 35 mm Travel
  4. Operating Temp -40°C to +85°C
  5. Mechanical Return
  6. Multiple Connector Options
  7. Typical application: latch release
  1. Dimensions: 160x56x32 (350g)
  2. Force: 250N
  3. Stroke: 35mm
  4. Operating Sound: 50dba
  5. Operating Voltage: 9V-16V
  6. Operating Temperature: -40℃ – 85℃
  7. Cable Return: Mechanical
  8. Connector: Std. OEM connectors
  9. Programmable: Simple On-Off operation
